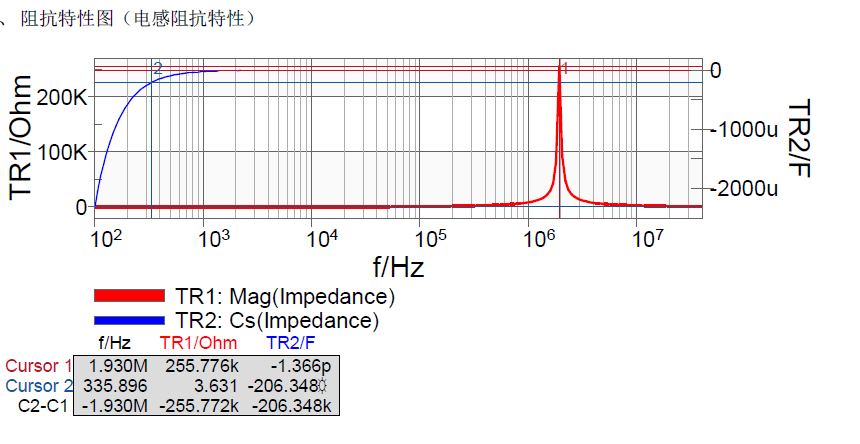

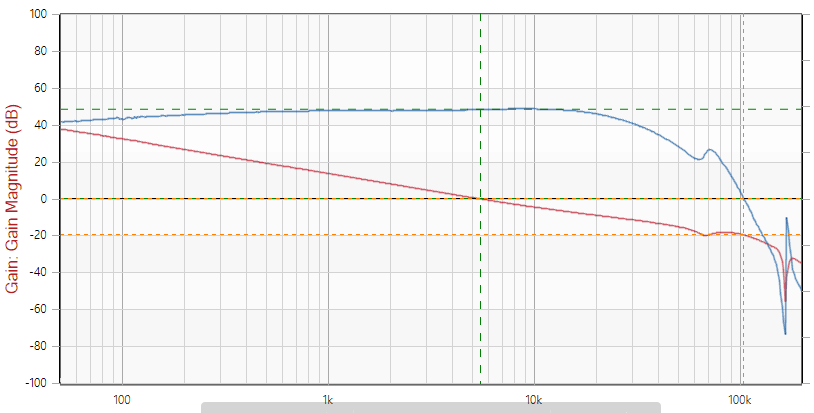

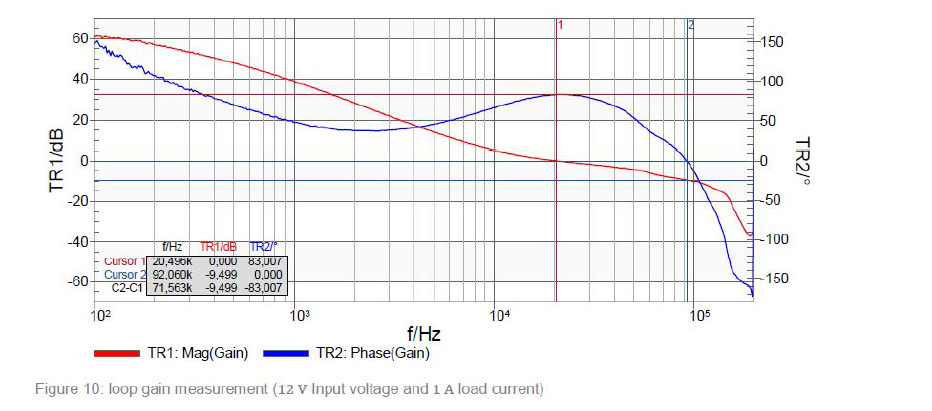

BODE100频率响应分析仪
BODE100网络分析仪,Bode100频率响应分析仪,Bode100环路分析仪
|
Characteristic |
Rating |
|
Wave form: |
Sinusoidal signal |
|
Frequency range |
10 Hz to 40 MHz (standard frequency range)*
1 Hz to 40 MHz (extended frequency range)*
*frequency ranges software switchable |
|
Signal Level |
-27dBm to 13dBm
0.01VRMS to 1VRMS (at 50 Ohm load) |
|
Accuracy of the source level (23°C +/-5°C) |
+/-0.3 dB (1Hz to 1MHz)
+/-0.6 dB (1MHz to 40 MHz) |
|
Frequency response of the source level 1Hz to 40MHz |
+/-0.3dB (referred to 100kHz) |
|
Frequency accuracy (23°C +/-5°C) |
+/-15ppm (<1 year after calibration)
+/-25ppm (<3 years after calibration) |
|
Source impedance: |
50 Ohm |
|
Return loss (1Hz to 40MHz) |
> 28dB (VSWR < 1.09) |
|
Spurious signals |
< -55dBc (typical) |
|
Harmonics |
< -55dBc (typical) |
|
Connector: |
BNC
|
Inputs: CH1, CH2 |
|
Input Impedance (high): |
1MOhm +/-2% (by design) |
|
Input capacitance: |
40 to 55pF |
|
Input Impedance (low): |
50 Ohm |
|
Return loss for low input impedance (1Hz to 40MHz) |
> 25dB (VSWR < 1.12) |
Noise floor for the gain measurement Conditions:
Resolution bandwidth = 10Hz, select internal reference,
PSOURCE = 13dBm, 50O load at CH2, 20dB attenuators for
CH1 and CH2 |
1Hz to 5kHz: -100dB (typical)
5kHz to 50kHz: -110dB (typical)
50kHz to 20MHz: -115dB (typical)
20MHz to 40MHz: -110dB (typical) |
|
Connectors |
BNC |
|
Receiver bandwidth: |
1Hz to 3kHz |
|
Input attenuator: |
0 dB, 10 dB, 20 dB, 30 dB, 40 dB |
|
Input sensitivity: |
100 mV full scale (for input attenuator 0 dB) |
|
Dynamic range: |
> 100 dB (at 10 Hz receiver bandwidth) |
|
Gain error: |
< 0.1 dB (calibrated) |
|
Phase error: |
< 0.5º (calibrated)
|
|
